Massive Build Volume

620x620x620 mm

Max Printing Speed

300 mm/s

Auto-Rising Dual Extruders

420°C

Actively Heated Chamber

80°C

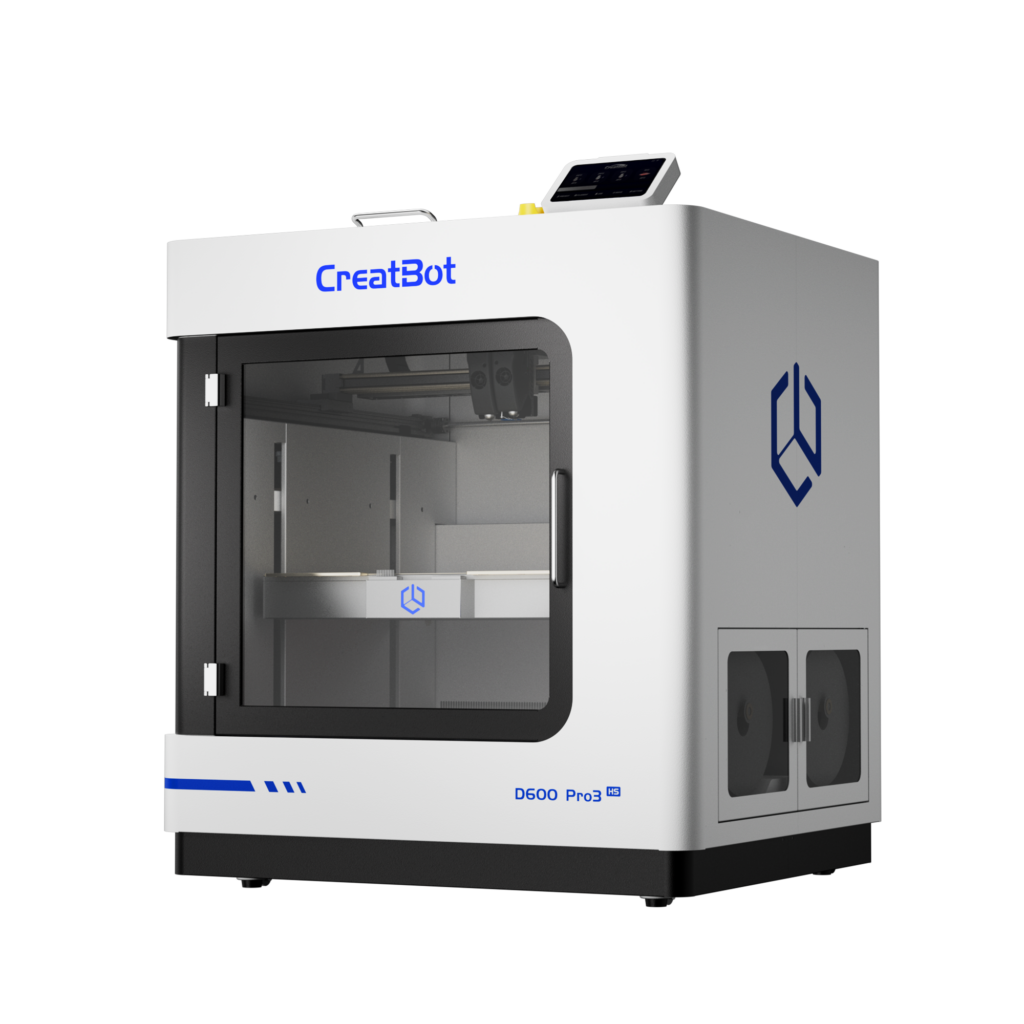

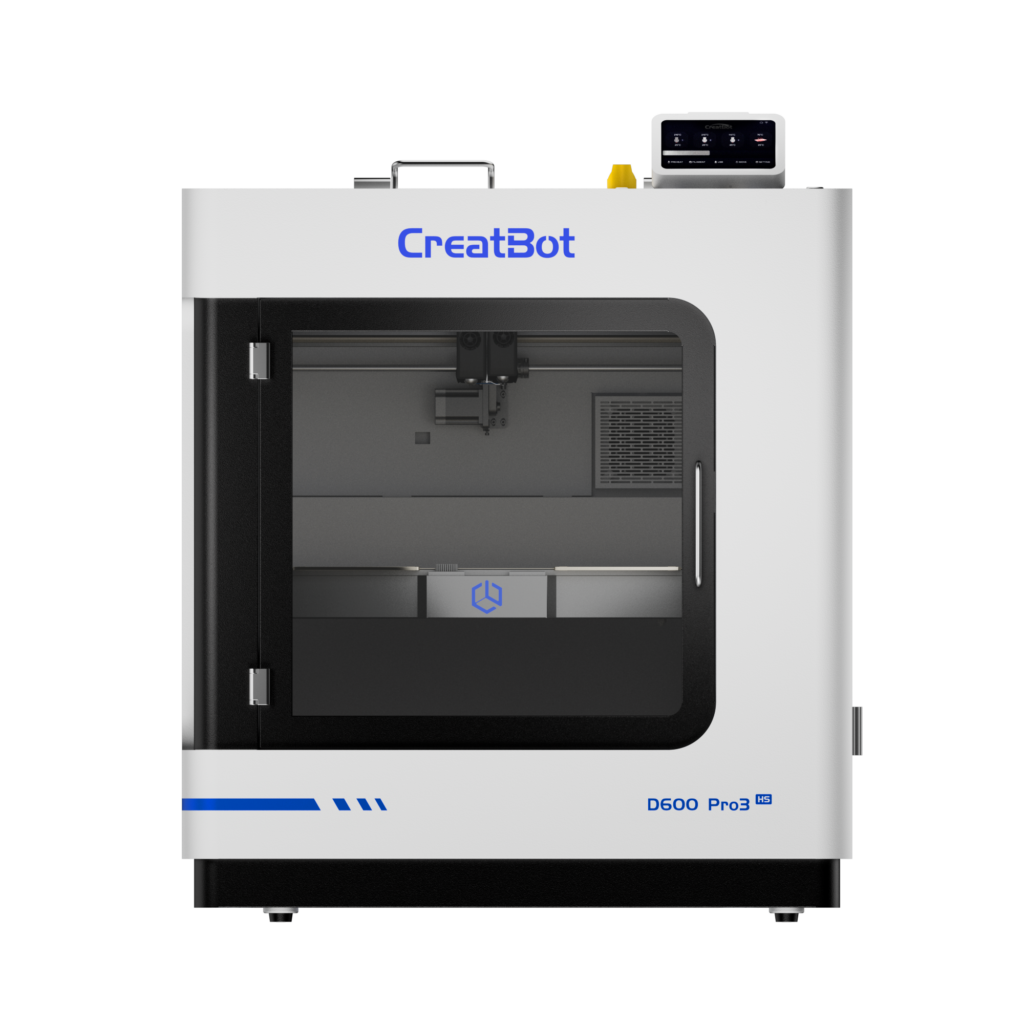

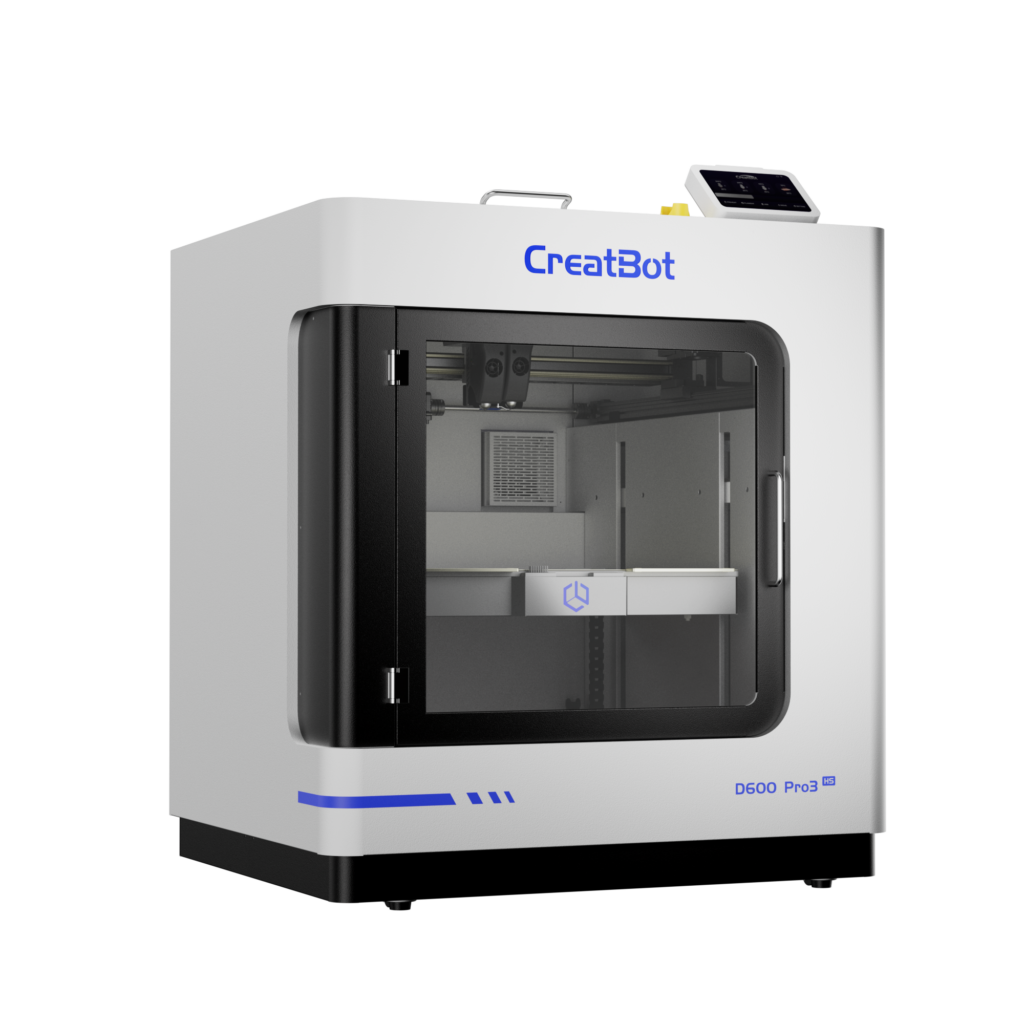

CreatBot D600 Pro3 HS

Official Reseller

Contact us or visit our official Shopee

Description

The CreatBot D600 Pro3 HS is a high-speed, industrial-grade 3D printer engineered for large-scale production. Featuring a massive 620 x 620 x 620 mm build volume, it allows you to print large, complex parts in a single piece, while its advanced system delivers rapid printing speeds up to 300 mm/s. Equipped with 420°C dual auto-rising extruders and an 80°C actively heated chamber, it ensures perfect layer adhesion and warp-free results, making it the ultimate solution for printing high-performance engineering materials like Carbon Fiber, Nylon, and Polycarbonate.

Full-Auto Dual-Nozzle XYZ Offset Calibration

XY via HD Macro Camera

Fully-Auto AI visual Recognition

0.02mm Accuracy

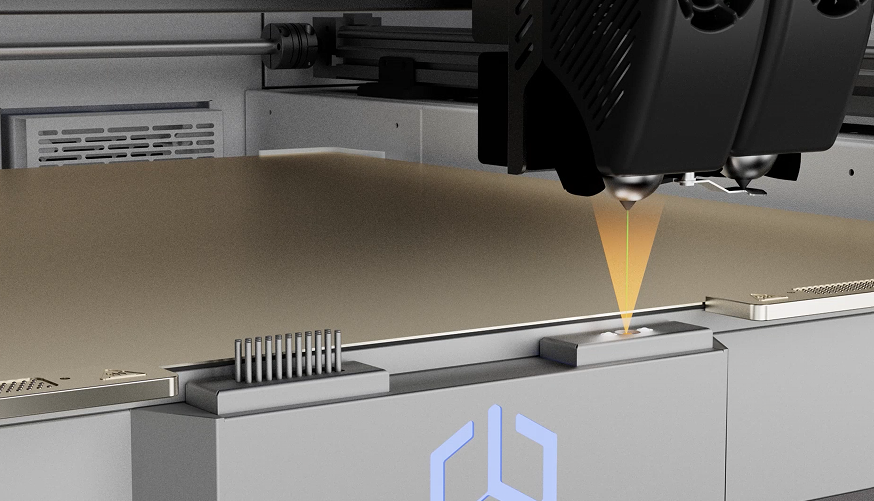

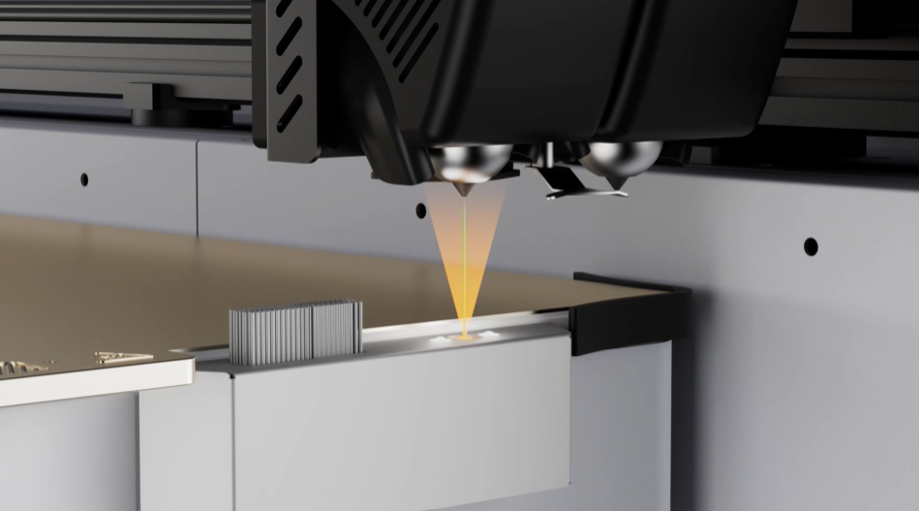

Z via Dual Photoelectric Sensor

Full-Auto Multiple Positioning

0.005mm Accuracy

Eddy Current Bed Leveling 0.001mm Precision

Revolutionizing Large-Scale Print Platform Calibration

The eddy current leveling system solves critical challenges in calibrating large build plates. Utilizing high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001mm — improving precision by 99% compared to traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.

Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds — reducing leveling time by 80% and significantly improving printing efficiency.

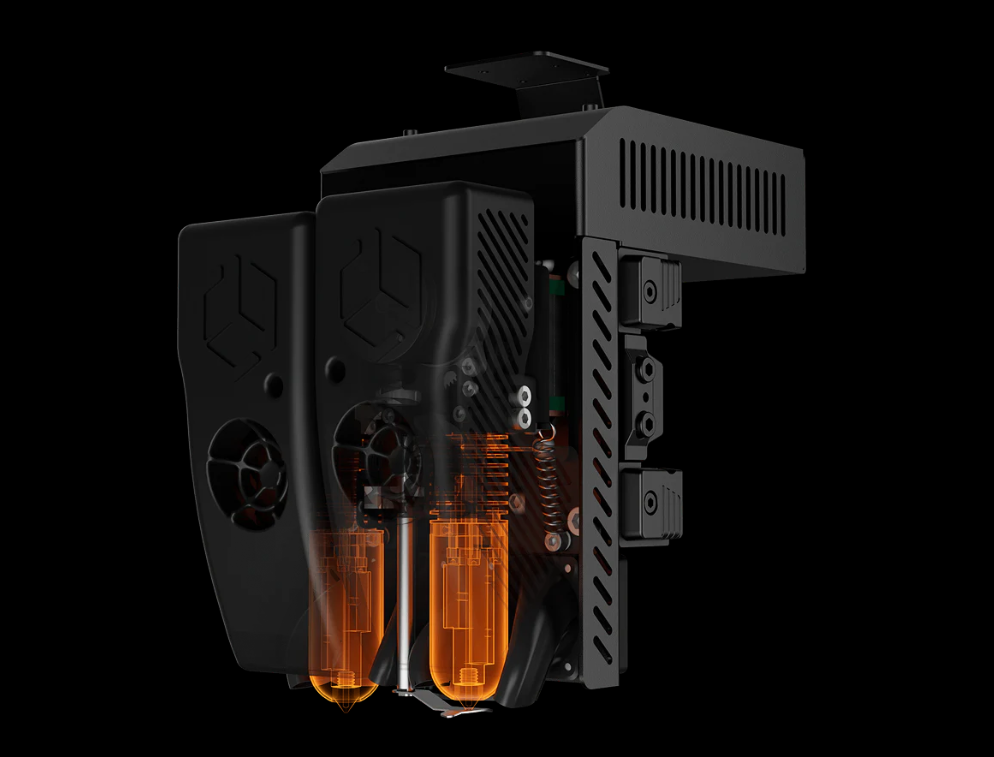

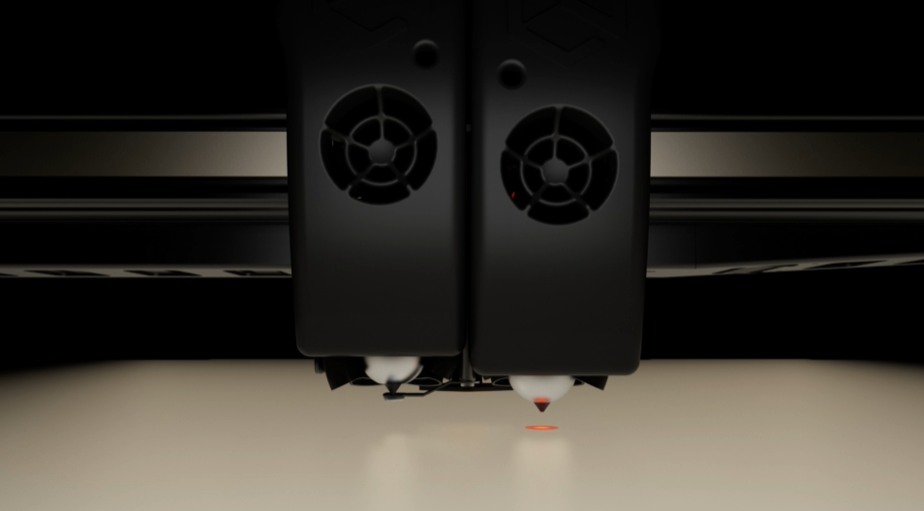

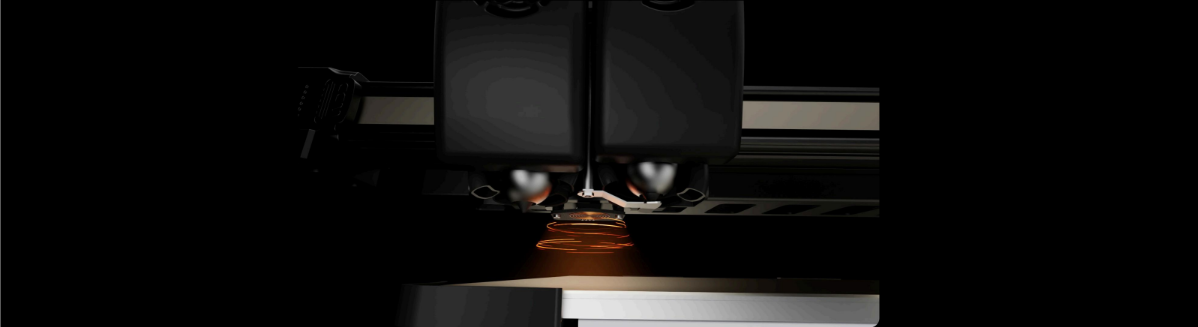

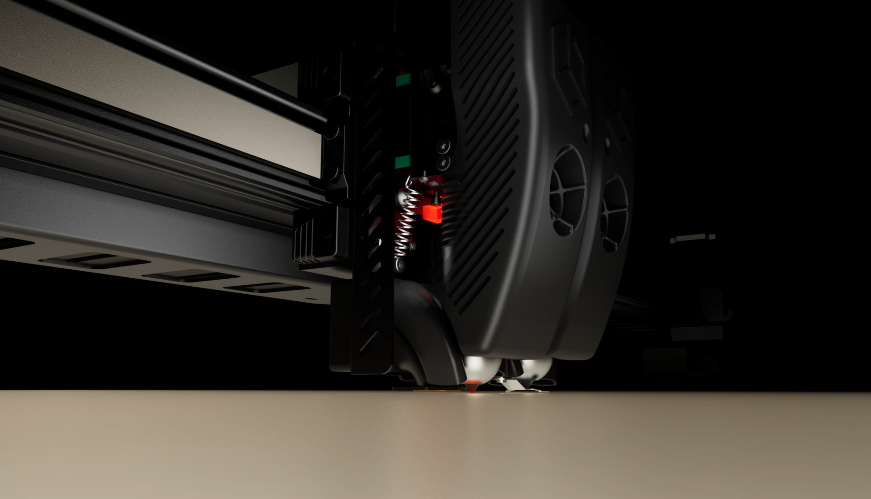

Auto-Raising Dual Extruders I 420°C

  • Flow Rate: 90 mm³/s
  • Heating to 400°C: 2 Mins
  • Thermostat Accuracy: ±0.15 °C



The D1000 Pro HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hottest temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.

Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.

Active Heated Chamber I 80°C

The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 80°C. This is crucial for preventing the shrinkage and deformation of large engineering materials.

Reduces Thermal Stress & Warpin
When printing large or high-strength engineering materials (e.g., ABS), uneven
cooling causes internal thermal stress, leading to warping, delamination, or
cracking.

Improves Interlayer Bonding
In low-temperature environments, excessive temperature differences between
molten and solidified layers weaken adhesion. A controlled heated chamber
maintains optimal layer temperature, enhancing molecular diffusion for
stronger interlayer bonding.

Minimizes Moisture Impact
The heated chamber minimizes the impact of ambient humidity on hygroscopic
filaments (e.g., Nylon), preventing bubbles or strength loss caused by moisture
absorption during printing.

Ensures Process Consistency

For industrial production, chamber temperature stability is critical for part-to-
part uniformity. Active temperature control eliminates environmental variability, guaranteeing reliable repeatability.
